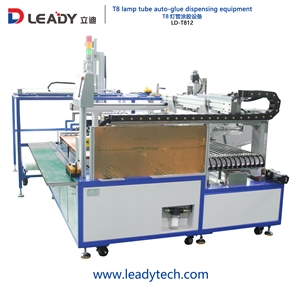

This equipment applies to the T8&T5 lamp tube glue dispensing production process. The tube?length can be 0.6m, 0.9m, 1.2m. As for the T8 tube with 1.5m, the machine needs to be customized. The automatic cutting soft PCB board parts can be designed according to customers' requirements, such as separate the soft?PCB board, and then suck them in 10?pcs?, 11?pcs?, or 12??pcs?each time.
?
This equipment applies to the T8&T5 lamp tube glue dispensing production process. The tube?length can be 0.6m, 0.9m, 1.2m. As for the T8 tube with 1.5m, the machine needs to be customized.
With the function of separate the soft PCB board automatically.

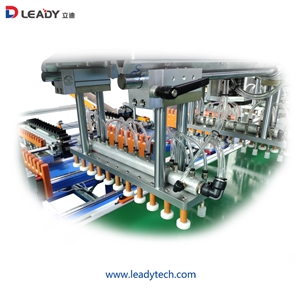

By using the vacuum to suck the soft PCB board automatically.
Load the lamp tube material automatically.

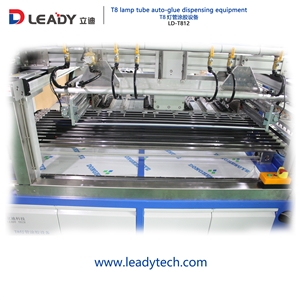

With multiple valves to dispense the glue on each soft PCB board, and then the PCB board through the tubes.
Use the mechanical arm to unloading the tube automatically.
Specifications：
- Outline size：3450*4580*1600mm (L*W*H)
- Product scope：1.2M，0.9M，0.6M T8 lamp tube（1.5M need to be customized）
- Rated voltage：AC110V/220V/230V/240V/380V
- Frequency: 50-60HZ
- Rated power：12KW
- Air pressure：0.5-0.7MPA
- Production capacity: more than 1100 pcs/h
?
